SLIDING SURFACES FOR MOVING PARTS

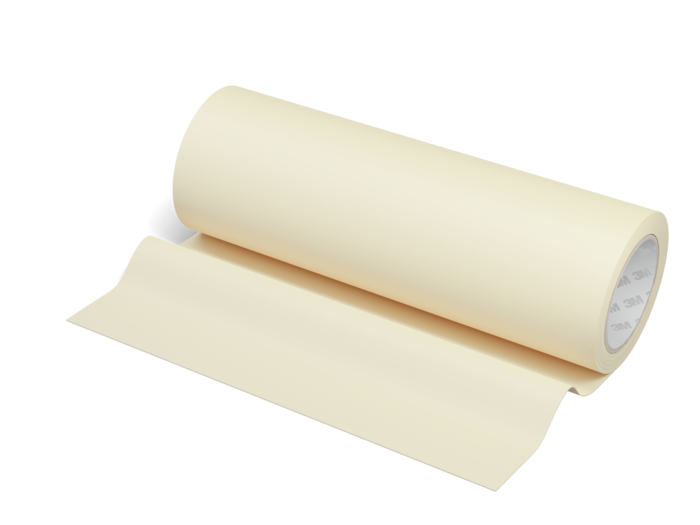

Self-adhesive slip film for low-friction surfaces
When parts slide against one another, friction, abrasion and noise can affect their function. Self-adhesive slip films equip the contact surface for the task; we help you select a product and the right converted format.
01
Selection criteria
Which surface needs to slide, and where must the film adhere?
Start at the friction point: which parts touch, how do they move, and what abrasion needs to be avoided? The substrate, surface condition and adhesive matter for attachment; the backing material, thickness and mechanical load matter for the sliding side. Check temperature and contact with substances against the specific product before deciding on format and delivery form.
02
SLIP FILMS IN THE RANGE
Self-adhesive films with sliding properties in the range
The listing shows films assigned the product property “low friction”. These include UHMW-PE sliding tapes and PTFE films; the product information describes each construction and its suitability.
No products match this combination.
No products match all of the selected filter criteria.
03
SELECTING A CONTACT SURFACE
Select slip film by backing and adhesive
In tesa 51206, a PE-UHMW film forms the low-friction, abrasion-resistant surface, with a pure acrylic adhesive beneath it. The film is described, among other uses, as a sliding aid and as protection for cable harnesses at friction points. The 3M sliding tapes 5421, 5423 and 5425 also use a UHMW polyethylene backing, but differ in thickness and adhesive type. These details are more useful for selection than the general term “slip film”.
Depending on the application, a PTFE product may also be considered for a sliding and non-stick surface: 3M 5480 has a skived PTFE film and silicone adhesive. This does not establish suitability for every substrate or load. Tell us the contact partners, part geometry, substrate, operating conditions and required format. Krückemeyer GmbH can cut suitable base material or convert it into die-cut parts; the format must be checked against the selected product.
04
SLIP FILM PRODUCT INFORMATION
05
QUESTIONS ABOUT SLIP FILM
What can self-adhesive slip film do at a friction point?
It can equip a contact surface with a low-friction backing and reduce friction between suitable parts. The product information for tesa 51206 describes a highly abrasion-resistant PE-UHMW film with a very low-friction surface, used as a sliding aid, to protect cable harnesses and to equip conveyor belts. The 3M UHMW polyethylene sliding tapes are also intended for surfaces where parts rub against one another. Whether abrasion or noise falls in your construction depends on the contact partners, load, attachment and installation conditions.
How do UHMW-PE and PTFE slip films in the range differ?
The documented difference starts with each product's construction. tesa 51206 combines a PE-UHMW backing with a pure acrylic adhesive. 3M 5423 uses a UHMW polyethylene backing with a rubber-resin adhesive; according to its product information, 3M 5425 has an acrylic version. In 3M 5480, a skived PTFE film with silicone adhesive provides the sliding and non-stick side. Compare the required sliding function alongside substrate, adhesive, thickness and operating conditions. A property of the backing does not automatically describe adhesion or suitability of the whole construction.
What information does Krückemeyer need for an appropriate cut format?
Specify both contact partners, the bonding substrate, direction of movement and load at the friction point. Add the part geometry, required width or outline, temperature and any contact with substances. For processing, say whether you need roll material or die-cut parts. The product information for tesa 51206 mentions a version with a release-paper liner for converting processes; the 3M information also describes a liner for die-cutting the sliding tapes. We use these details to check the material and converted format for your application.
Are abrasion and chemical resistance the same for every slip film?
No. The statements apply to the particular product and its specified test or use conditions. tesa describes 51206 as highly abrasion-resistant and resistant to acids, alkalis and aggressive gases; its technical information says the values are typical and unsuitable as specifications. The 3M product information highlights the solvent and ageing resistance of the acrylic version of 5425. Do not transfer these statements to every slip film, its adhesive, the substrate or the complete application. Check the selected product and installation conditions for any specific chemical exposure.
06
Request advice
Describe the contact partners, bonding substrate, load and required format. We will discuss suitable slip films with you and assess whether a cut length or die-cut part suits your process.
Discuss the sliding surface and format
Send us details of the friction point and your planned processing. If you have already selected products, you can use the enquiry list.
